Guide Rail Screw

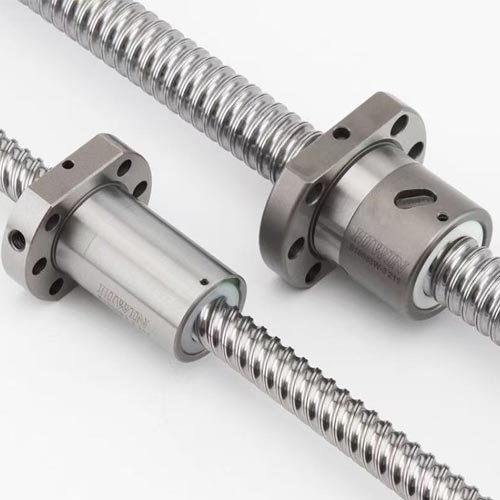

What Is a Guide Screw?

Guide rail screw is a high-precision linear motion system composed of linear guide rails and ball screws. It is widely used in various automation equipment, CNC machine tools, laser cutting, semiconductor equipment, 3D printing and other fields. It combines the advantages of high-precision positioning, low friction and high-efficiency transmission, and is a key component for realizing mechanical automation and intelligent manufacturing.

2.Product Features

High-precision positioning
The ball screw has excellent repeatability and accuracy of ±0.01mm, suitable for precision equipment.
High rigidity & stability
The linear guide supports the slider by rolling steel balls, with strong load-bearing capacity and smooth operation without jitter.
Low friction & high efficiency
Compared with traditional screw transmission, the friction coefficient is smaller, the transmission efficiency is as high as more than 90%, and the energy saving effect is significant.
Low noise & long life
Using precision grinding technology and high-quality steel, it effectively reduces operating noise and prolongs service life.
Modular combination
The guide rails and screws can be combined into various modules for quick assembly and maintenance.

3.Applications

(1)CNC machine tools (CNC): used for X/Y/Z axis movement
(2)Laser engraving/cutting machines: ensure cutting accuracy and repeatability
(3)Automated assembly lines: such as slides, sorting robots
(4)3D printers: ensure stable printing layer height
(5)Medical equipment: precision mobile platforms, inspection instruments
Semiconductor manufacturing: used for wafer transfer systems, dispensing machines
